SDHMini-Ex



The Model SDHmini-Ex portable hygrometer sets new industry standards for dewpoint (Click Here for PDF)

An intrinsically safe portable dewpoint hygrometer which offers quick and reliable spot-check measurements of dewpoint and trace moisture content
for industrial applications. This robust and lightweight instrument features an intuitive menu structure and advanced features which will enable the user to perform measurements in the toughest of environments, quicker and easier than ever before.
Certified intrinsically safe to ATEX, IECEx and UL standards, the SDHmini-Ex is the perfect tool for reliable measurements in hazardous areas. The robust housing not only contains the moisture sensor, desiccant chamber and gas sample ports but also incorporates the signal conditioning circuitry, memory management and a full colour graphics LCD. The on-board rechargeable lithium-ion battery provides over 150 hours of continuous operation. The unit operates with the following ten language options: English, German, French, Spanish, Portuguese, Russian, Italian, Chinese, Japanese and Korean. Powerful microelectronics provide automatic calibration with real time data logging graphical formats for the capture and display of up to 150,000 data points with USB and Bluetooth interfaces for PC communication and printing. measurement.

SADP

SADP Photo
(More info Click Here)

SADP Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Automatic Dewpoint Meter is certified by ATEX: Intrinsically Safe to II I G EEx ia IIC T6 FM: Intrinsically Safe Class 1, Division 1, Groups A&B, C, D, T6.

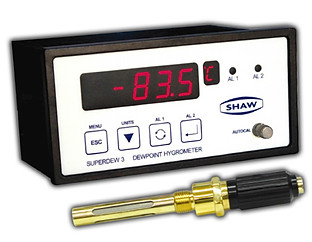

Superdew 3

Superdew 3 Shaw Meter
(More info Click Here)

The SUPERDEW 3 Model from Shaw Moisture Meters is a single channel on-line hygrometer designed to measure dewpoint in process gases and compressed air. The panel mounted enclosure panel dust tight protection. Weather proofing optional.

SADP Digital

SADP-SG SHAW
(more info click here)

Accuracy: Sensor accuracy typically 1PPM equivalent i.e. +/-3 deg. C DP Type: Portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Intrinsically safe LCIE certified to
Eex.ia IIC T6.

SDT Transmitter

SDT Dewpoint Transmitter
(More info Click Here)

The Shaw Moisture Meters Model SDT is a compact, 2 wire, 4-20 mA dewpoint transmitter with integral sensor designed to meet the stringent demands of industrial applications. The unit is fully self contained within a robust housing providing weatherproof protection to IP66 / NEMA4.

SDT-Ex Transmitter

SDT-Ex Dewpoint Transmitter
(More info Click Here)

The Shaw Moisture Meters Model SDT-Ex is a compact, 3 wire, 4-20 mA dewpoint transmitter with integral sensor designed to meet the stringent demands of industrial applications. The unit is fully self-contained within a robust housing providing weatherproof protection to IP66 / NEMA4X.



SuperDew De-Luxe, SDDL

SDDL SHAW
(more info click here)

Accuracy: Sensor to 1PPM equiv, +/- 4 deg. C DP Type: Mains operated portable hygrometer in stove enamelled zinc plated steel and alloy case, complete with leather padded carrying case. For table top or portable use with dessicant chamber for rapid readings. Dimensions / Weight: Overall dimensions: 202mm x 225mm x 276mm High (320mm with head extended) Weight: 4 Kg approx.

SDG

SD2 SHAW
(More info Click Here)

The SDG has a practical dew point range of - 80 degrees c. dew point which is from less than one part per million of water vapour, up to the moisture level in room air. There is much more to the Super-Dew than first meets the eye. It can be connected by ordinary t/v cable, to a Shaw moisture sensor, from a remote site up to half a mile distant.



SU4

SU4 SHAW
(More Info Click Here)

The SU4 will reduce the pressure from the dryer to give a flow suitable for measurement. It combines a pressure reduction control, sensor holder and a flow meter for up to 10 litres per minute. (1-2 litre is usual for continuous use). Moisture measurement under pressure will not give the correct answer but room pressure used in the SU4 will read correctly.



SWS-SD

SWS-SD SHAW
(More Info Click Here)

Accuracy:1% across meter range. For Sensor accuracy see sensor specification sheet. Description: IP65 Weatherproof housed In-line hygrometer in GRP enclosure with Perspex window, for wall or pedestal mounting, including SuperDew meter and sample system comprising 3 port sample selection valve, filter unit, pressure regulator, flow indicator, sensor holder and sensor.



Moisture Log

MLSPEC SHAW
(More info click here)

Accuracy: 1PPM equivalent or +/- 3 deg. C DP across meter range. Type: Battery operated logging portable and in-line hygrometer in plastic case
Dimensions / Weight: (meter) Overall dimensions: 70mm x 55mm x 26mm depth Weight: 80g approx.
Display: 1.2cm LCD digital indicating meter showing Dewpoint.
